Mesin gulungan tabung pemanas pelari panas

Struktur dan sifat utama

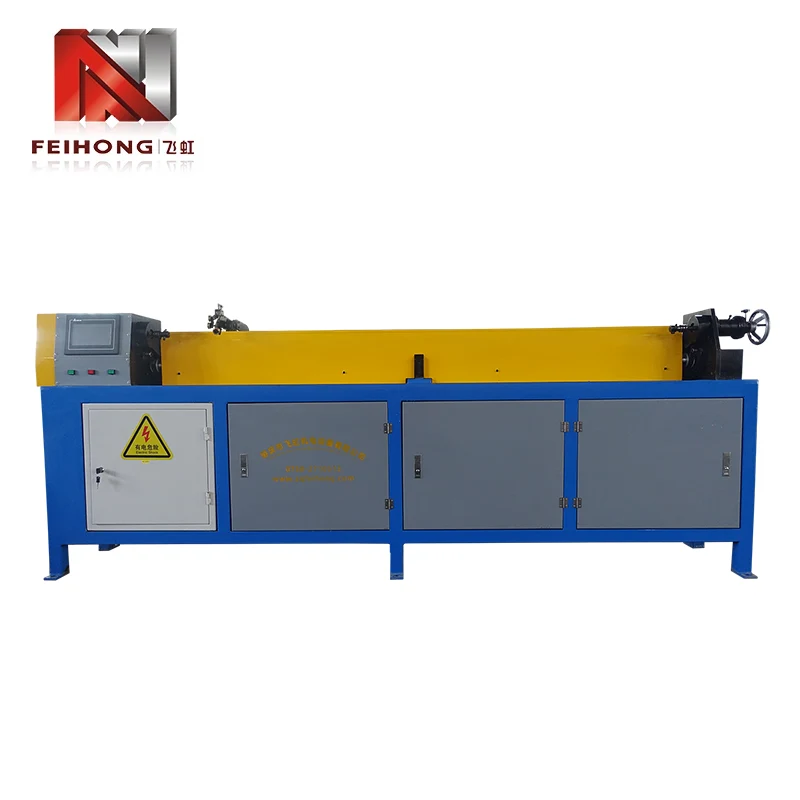

FH-324 Hot runner heating tube winding machine is specially designed for winding heating wire components for hot runner heating tube;the spiral coil is small,and the inner diameter after winding is usually only 0.5mm or less,whichis difficult to use on other winding equipment.operate.This machine can be used for winding helical coils with different pitches,and the machine can be equipped with single- winding and double-winding functions.It adalah mesin gulungan tabung pemanas pelari panas yang dapat memutar diameter kawat yang lebih kecil saat ini.

Parameter teknis utama

1. Coil Diameter (mm): 0,08-1.0

2.Length of Winding (mm): 100-2000

3. Mode Kontrol: Motor Servo+Layar Sentuh PLG+

4. Kecepatan Disesuaikan

5. Shift (Set): 600-1000

6. Satu mesin dapat melukai elemen pemanas listrik seperti lembaran mika, serat karbon, magnesium batang, batang keramik, dll.

7. Tegangan: tiga fase 380V/tiga fase 220/V/fase tunggal 220V

8. Power.500W

9.Machine Volume (mm): L*W*H2500*700*1300

10.Machine berat: 300kg
